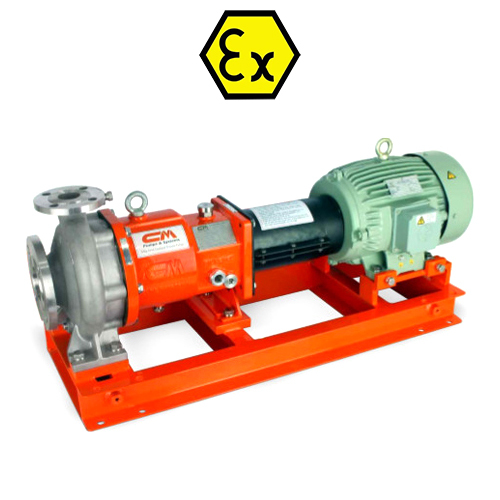

CZB Series Magnetic Drive Chemical Process Pumps
185000 INR/Unit
Product Details:
X
CZB Series Magnetic Drive Chemical Process Pumps Price And Quantity
- 185000 INR/Unit
- 1 Unit
CZB Series Magnetic Drive Chemical Process Pumps Trade Information
- 1 Unit Per Week
- 4-6 Week
Product Description
Features:
- Single Stage, Horizontal Centrifugal Pump.
- Hydraulic Performance and Dimensions according to DIN EN ISO 2858
- Technical design based on DIN EN ISO 15783
- Permanent Magnet Drive
- Maintenance Free
- Separation of Liquid Chamber to Atmosphere by Means of Isolation Shell
- Slipless Power Transfer
- Materials : Steel, Stainless Steel, Nickel Based Materials
- Frame Mounted Design
- Hydraulically balanced impeller for minimum bearing loads
- Product-Lubricated Journal Bearings; made of Silicon Carbide (SSiC) or Customized Materials
Technical Data
- Operation Range
- Flow Rate : max. 100m /h3
- Delivery Head : max. 100 metre
- Pressure Rating : Class 150
- Temperatures : -35 degree C to +250 degree C
- Kinematic viscosities : 0.5 to 350 mm2 /s
Stainless steel SS 316, SS 316L, SS 304, SS 304L Other materials duplex alloys , nickel-base alloys(e.g. Hastelloy ),
Working Principle | Radial flow pump |
Stages | Single stage |
Priming Method | Flooded suction |
Sealing System | Magnetic coupling |
Standards | DIN EN ISO 2858 /ANSI |
Standards | DIN EN ISO 15783 / ANSI |
ATEX | 2014/34/EU |
Pump Model |
| Nominal duty point |
| ||||||||||||||||||||
|
|
outlet mm
|
impeller (nominal) mm
|
n 1450 min
|
n 2900 min
| Pump | Support | w | holes S1 |
Clearance bolts
for S2
| d | end l | x | ||||||||||
Q m3/h
| H m |
Q m3/h
| H m | a | f | h1 | h2 | b | m1 | m2 | n1 | n2 | n3 | ||||||||||
| 25 | 25 | 125 | 2 3 |
5 10
| 4 5 | 20 | 80 | 312 | 112 | 142 | 50 | 100 | 80 | 190 | 140 | 50 | 270 | M12 | M10 | 20 | 35 | 15 |
| 32 | 25 | 125 | ||||||||||||||||||||
| 32 | 25 | 150 | 30 | |||||||||||||||||||
| 50 | 32 | 125 | 6.3 | 5 | 12.5 | 20 | 80 | 385 | 112 | 140 | 50 | 100 | 70 | 190 | 140 | 110 |
285 370
| M12 | M12 | 24 | 50 | 100 |
| 50 | 32 | 160 | 8 | 32 | 132 | 160 | 240 | 190 | ||||||||||||||
| 50 | 32 | 200 | 12.5 | 50 | 160 | 180 | ||||||||||||||||
| 50 | 32 | 250 | 20 | 80 | 100 | 500 | 180 | 225 | 65 | 125 | 95 | 320 | 250 | 32 | 80 | |||||||
| 65 | 40 | 125 | 12.5 | 5 | 25 | 20 | 80 | 385 | 112 | 140 | 50 | 100 | 70 | 210 | 160 | 110 |
285 370
| M12 | M12 | 24 | 50 | 100 |
| 65 | 40 | 160 | 8 | 32 | 132 | 160 | 240 | 190 | ||||||||||||||
| 65 | 40 | 200 | 12.5 | 50 | 100 | 160 | 180 | 265 | 212 | |||||||||||||
| 65 | 40 | 250 | 20 | 80 | 500 | 180 | 225 | 65 | 125 | 95 | 320 | 250 | 32 | 80 | ||||||||
| 80 | 50 | 125 | 25 | 5 | 50 | 20 | 100 | 385 | 132 | 160 | 50 | 100 | 70 | 240 | 190 | 110 |
285 370
| M12 | M12 | 24 | 50 | 100 |
| 80 | 50 | 160 | 8 | 32 | 160 | 180 | 265 | 212 | ||||||||||||||
| 80 | 50 | 200 | 12.5 | 50 | 200 | |||||||||||||||||
| 80 | 50 | 250 | 20 | 80 | 125 | 500 | 180 | 225 | 65 | 125 | 95 | 320 | 250 | 32 | 80 | |||||||
| 100 | 65 | 125 | 50 | 5 | 100 | 20 | 100 | 385 | 160 | 180 | 65 | 125 | 95 | 280 | 212 | 110 | 285 | M12 | M12 | 24 | 50 |
100 140
|
| 100 | 65 | 160 | 8 | 32 | 500 | 200 | 370 | 32 | 80 | |||||||||||||
| 100 | 65 | 200 | 12.5 | 50 | 180 | 225 | 320 | 250 | ||||||||||||||
| 100 | 65 | 250 | 20 | 80 | 125 | 200 | 250 | 80 | 160 | 120 | 360 | 280 | M16 | |||||||||
Industries
- Chemical Processing : basic and fine chemicals
- Agrochemicals, speciality chemicals
- Pharmaceuticals
- Biotechnology processing
- Food and beverage
- Pulp and Paper
Processes
- Aseptic Processes
- Chlor-alkali electrolysis
- MDI Processes
- Refrigeration and heating cycles
- Tank unloading
- TDI Processes
Fluid
- Hydrogen peroxide
- Molten Sulphur
- Nitric Acid
- Oleum
- Phosgene
- Phosphoric acid
- Potassium hydroxide solution
- Sodium hydroxide solution
- Sulphuric acid
- Toluene
- Solvents
- Alkalis
- Toxic liquids
- Corrosive liquids
